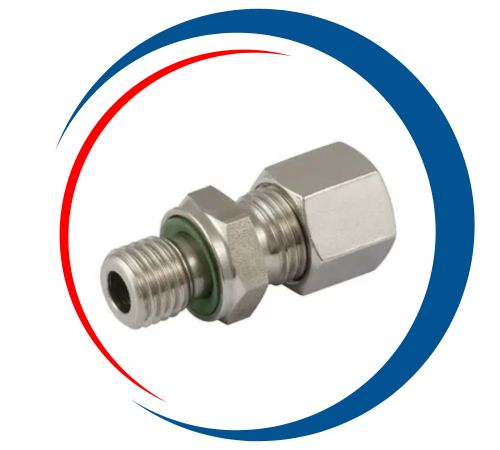

Hydraulic Male Stud Coupling

Home > Hydraulic Male Stud Coupling

Hanan Tube Fittings is a leading manufacturer and supplier based in Muscat, OMAN, specializing in high-quality tube fittings for various industries. With a commitment to precision engineering and superior materials, we deliver reliable products that meet international standards. Our Hydraulic Male Stud Coupling is designed for seamless fluid transfer, offering durability, leak-proof performance, and easy installation. Trusted for excellence, we are the go-to partner for critical fluid control solutions across the OMAN.

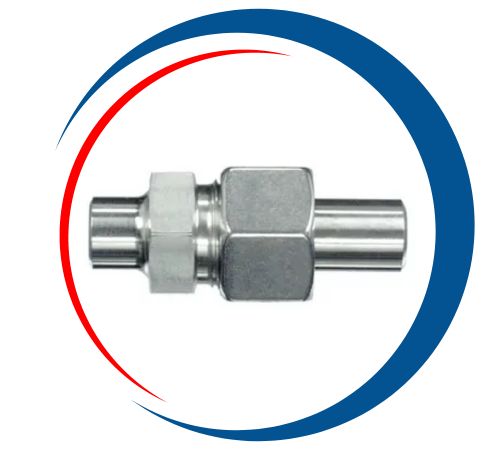

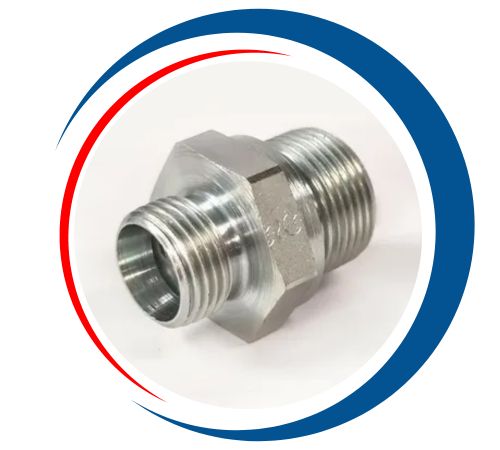

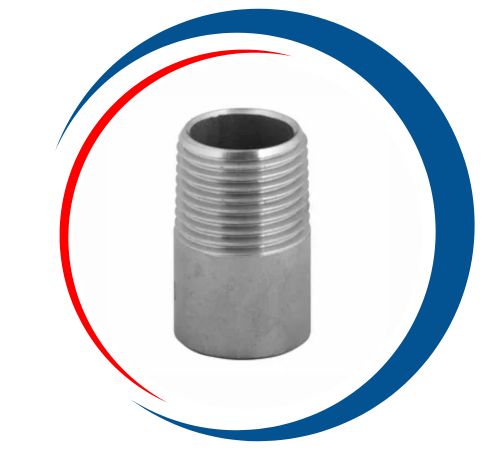

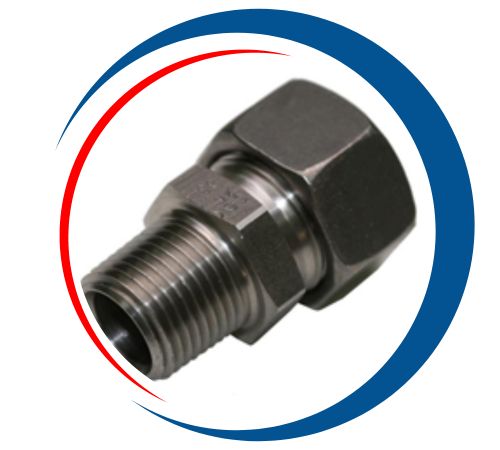

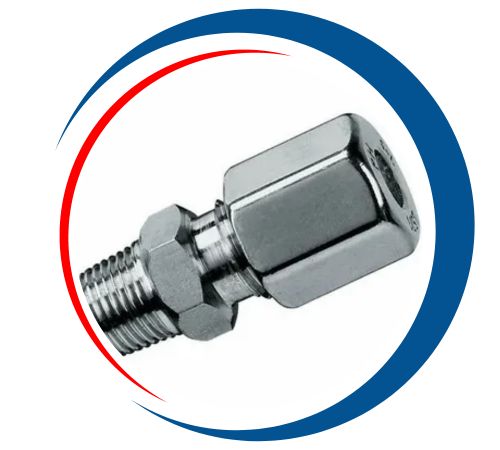

Hydraulic Male Stud Coupling Supplier in Muscat, C.S Male Stud Coupling Price List in Seeb, Male Stud Coupling with ED Manufacturer in Salalah, SS Male Stud Coupling In Bawshar, Hydraulic Weld Connector Exporter in Seeb, SS Weld Connector With Weld Nipple and O Ring Manufacturer in Ibri, Hydraulic Male Stud Coupling In Muscat, OMAN.

Hydraulic Male Stud Couplings are typically made from stainless steel, brass, or carbon steel, ensuring corrosion resistance and durability. Depending on the material, they feature high tensile strength, with pressure ratings often exceeding 3000 psi. These couplings offer excellent mechanical properties such as high strength, leak-proof sealing, and vibration and pressure surge resistance. The advantages include ease of installation, reliable fluid transfer, and compatibility with various hydraulic systems, making them ideal for automotive, construction, and manufacturing industries.

Hydraulic Male Stud Coupling Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO MALE THREAD , WELD NIPPLE TO MALE THREAD

BODY TYPE	BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182
	STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
	BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Top Hydraulic Male Stud Coupling Manufacturing Company in Muscat

At Hanan Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Male Stud Coupling in Muscat, OMAN. Our advanced manufacturing facilities, strategically positioned in the OMAN, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hydraulic Male Stud Coupling

Dimension of Hydraulic Male Stud Coupling

DIAM D	C	E	F	F1	DIM G	H	HMAXI	H1	BODY	SEALING WASHER	MINIMUM WORKING TEMPERATURE	MAXIMUM WORKING TEMPERATURE
4 MM	G1/8	6,5 MM	13 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
4 MM	G1/8	5,5 MM	13 MM	10 MM	14 MM	17,5 MM	9 MM	brass	nitrile	-40 CE	100 CE	0,016 KG
4 MM	M5x0,8	5 MM	10 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,01 KG	10
4 MM	M7x1	6,5 MM	10 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
4 MM	M8x1	6,5 MM	11 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
5 MM	G1/8	6,5 MM	13 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,018 KG	10
5 MM	G1/8	5,5 MM	13 MM	12 MM	14 MM	18,5 MM	9,5 MM	brass	nitrile	-40 CE	100 CE	0,027 KG
5 MM	M8x1	6,5 MM	11 MM	12 MM	17,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
5 MM	M10x1	6,5 MM	14 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,02 KG	10
6 MM	G1/8	6,5 MM	13 MM	13 MM	18 MM	8,5 MM	brass	nitrile	-40 CE	100 CE

Hydraulic Male Stud Coupling Exporter in Muscat, C.S Male Stud Coupling Price List in Seeb, Male Stud Coupling with ED Manufacturer in Salalah, Hydraulic Male Stud Coupling In Bawshar, Male Stud Coupling with ED Supplier in Seeb, SS Male Stud Coupling Manufacturer in Ibri, Hydraulic Male Stud Coupling In Muscat, OMAN.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hydraulic Male Stud Coupling Supplier in Muscat, OMAN

Hanan Tube Fittings is a leading supplier and stockist of premium Hydraulic Male Stud Coupling in Muscat, OMAN. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Male Stud Coupling Uses

Hydraulic Male Stud Couplings are widely used in hydraulic systems for connecting pipes or hoses to components like pumps, cylinders, and valves. They ensure a secure, leak-free connection under high pressure, making them ideal for industrial machinery, construction equipment, and automotive systems. These couplings facilitate efficient fluid flow while minimizing vibration and ensuring easy assembly and disassembly. Their robust design allows for reliable performance in harsh environments, including oil and gas, agriculture, mining, and marine industries, where durability and reliability are crucial.
